How Can I Improve Kick Detection?

Are you confident in your well’s kick detection system? How early, and how confident, can you detect a gain or loss?

Kick detection is identifying unintended fluid gains or losses in the well – ideally as early as possible. Early detection allows for faster response, reduced rig time when managing it, and preventing an escalation. But traditional methods come with uncertainties, including delayed readings, interpretation challenges, and external factors such as rig movement.

In this article, we’ll break down the challenges of kick detection, examine the limitations of conventional methods, and explore how advancements like mass-flow meters and Controlled Mud Level (CML) technology are improving the process. By the end, you will see how precise well monitoring will reduce detection time and improve operational response.

What is Kick Detection in drilling operations?

First off, let’s have a closer look at what kick detection is, before we look at the methods and challenges.

Kick detection is an important monitoring method used to identify gains or losses in the well. Detecting a loss at an early stage enables a quicker response to limit reduction of the hydrostatic column and reduce the risk of subsequent kick.

Detecting a kick at an early stage provides a more easily manageable situation requiring less rig time before normal operations can resume. Early kick detection can help prevent the situation from escalating into a more serious operational situation.

Detection methods

Conventional kick detection uses sensors to monitor the fluid level in the active pits and have a paddle in the flowline to provide feedback on the fluid volume in the surface lines. The volume monitoring of the well is then based on flow in vs flow out, calculated volume from cuttings and readings from the sensors.

When tripping, and volume of steel is added to or removed from the well, trip tanks are used for either receiving fluid volume coming from the well, or to fill up the well. The volume change in the trip tanks is recorded and cross checked against the amount of steel added or removed at the same time (trip sheet). This is done to see if there are gains or losses occurring during tripping when the fluid volume in the well is changing because of the change in steel volume in the well.

Advancements like Coriolis meters have improved the accuracy of kick detection. When circulating they provide more precise feedback on mass-flow in vs mass-flow out on surface. However, during non-circulating operations, conventional methods are still relied upon, and mass-flow meter accuracy are affected when gas is present in the returning fluid.

Check out: What Are Undrillable Wells in 2025 and How to Make Them Drillable

Reliability

There are several uncertainties affecting the monitoring of a well for gains or losses.

Fluid Volume and Pipe Movement: As already mentioned, pipe movement in or out of the well changes the amount of fluid volume in the well. This is not recorded as a direct 1:1 volume change, and the flowline from the diverter to the trip tanks act as a buffer, further delaying surface readings. Trip sheets are used to understand whether the well is behaving differently for these operations and are based on trends from connection to connection.

Pump Cycles and Flow Mismatch: When the pumps are turned off, the volume in the surface lines is gradually reduced while the volume in the active  pit continues to increase for a period after the pumps are turned off. Conversely, when the pumps are turned on there will be a mismatch between flow in and out as surface lines are filled up again. Trends are used to determine whether the changes in volume readings are caused by natural factors or fluid gains or losses.

Downhole Conditions and Cuttings Influence: Drilling speed (ROP) affects cuttings transport - high ROP generates more cuttings in the well, while a low ROP can nearly circulate the well free of cuttings. Additionally, downhole behaviors like well ballooning or breathing can mimic fluid gains or losses, leading to misinterpretations. Misinterpreting these conditions as gains or losses can lead to more serious situations. When a gain or loss occurs, it takes a while before it is detected on the surface regardless of using conventional methods or a mass-flow meter.

External factors and Equipment Limitations: Rig movement caused by heave or pitch and roll is a source of uncertainty, especially in harsh environments. Leaks or pump efficiencies can also add uncertainties when measuring flow in vs flow out.

The sum of these uncertainties can lead to falsely identifying a loss or kick which takes up rig time, or not detecting a loss or kick until the event has escalated into a more significant challenge. Experienced rig crews and mud loggers might also be required to identify and interpret the different anomalies and this interpretation leads to a delayed reaction.

Read more: How Does CML MPD Work?

One of the key limitations with conventional kick detection is that gains and losses are identified indirectly through surface measurements and trend interpretation.

In CML operations, changes in well volume are monitored and measured directly in the well.

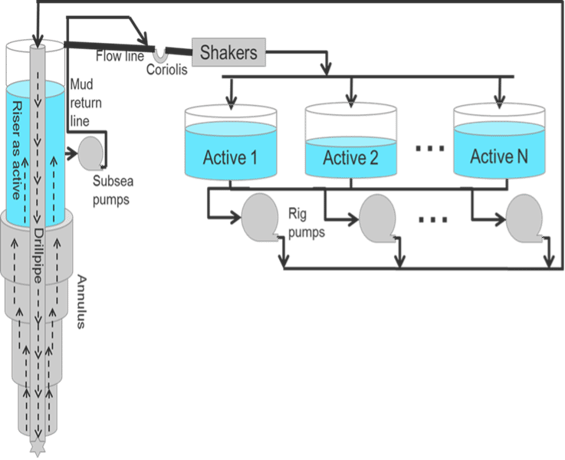

 llustration of how CML-based monitoring differs from conventional surface-based kick detection by monitoring directly on the well with subsea pressure sensors and the ability to use the Riser as the Trip Tank.

Addressing the challenges

Advancements in technology have significantly improved kick detection, reducing uncertainty and response time when a gain or loss occurs.

Mass-Flow Meters for Early Detection: Mass-flow meters have significantly improved monitoring accuracy and reduced confirmation time when a gain or loss occurs. When the well is being circulated, a mass-flow meter provides early kick and loss detection.

Controlled Mud Level (CML) for near Instant Detection: The CML MPD method uses downhole pressure measurements for kick detection. The Subsea Pump Module (SPM) will also indicate a kick by increasing speed to maintain the desired fluid level in the riser.

Eliminating Delays & Surface Uncertainties with CML: With the sensor placed in the well, the riser becomes a part of the active fluid system, and the well itself functions as a trip tank. This setup reduces delays and uncertainties associated with surface flowlines, leaks, and pump inefficiencies. By keeping the fluid level below the telescopic joint, the system also removes uncertainties otherwise caused by rig heave.

Near-Instant Kick Detection with CML: By constantly measuring volume in the well, kick detection shifts from early to near-instant – even during non-circulating operations. Downhole conditions can rapidly be managed by adjusting the riser level and applying a Constant Bottom Hole Pressure (CBHP).

With these advancements, operators can move beyond interpretation-based detection to a system that provides instant, precise, and reliable volume information – reducing risk and improving well monitoring.

Conclusion

Effective kick detection is important for reducing rig time and supporting safe operations. While early detection helps reduce the impact of a gain or loss event, accuracy is just as critical – misinterpreting anomalies can lead to unnecessary shut-ins or, worse, missed kicks that escalate into serious incidents.

By eliminating uncertainties, operators can reduce uncertainty in well monitoring, enabling faster, more confident decision-making. The future of kick detection is not only about improving alerts – it’s about consistent monitoring with near-instant feedback and reducing the dependence on interpretation of surface trends.
